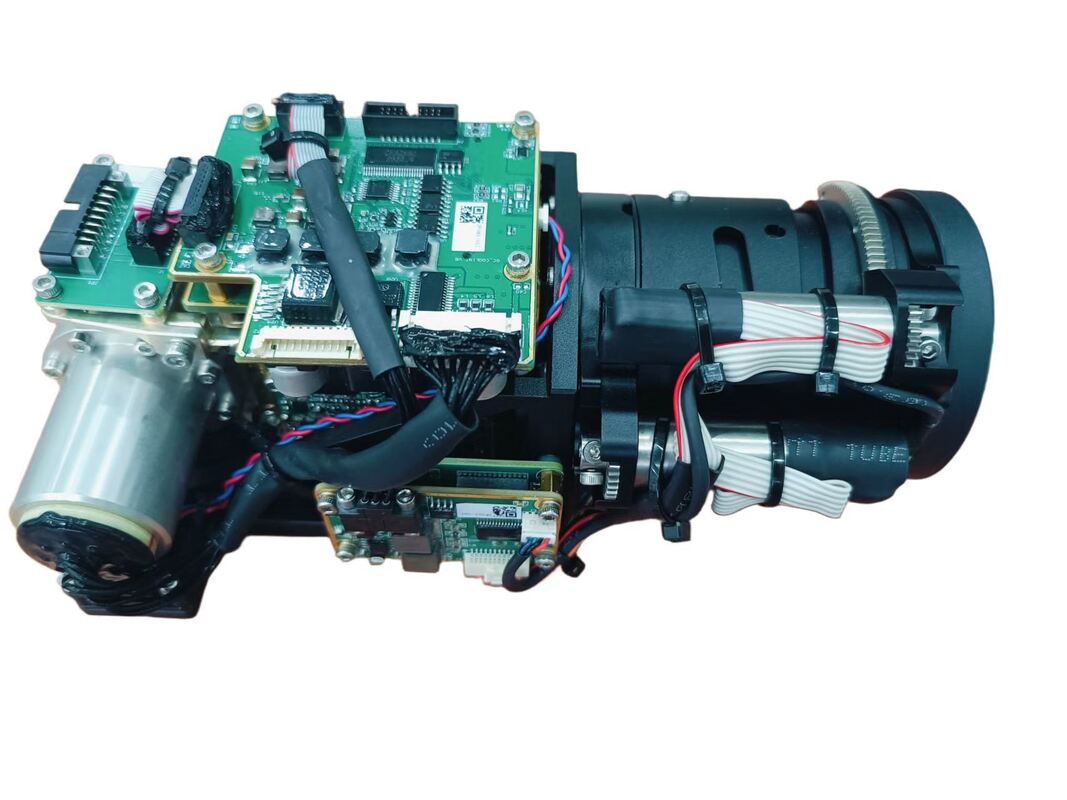

Name: JH640-275 Infrared Cooled Thermal Camera with MCT640×512 Detector 20mm~275mm Continuous Zoom and ≤25mK NETD
Brand: Wuhan JOHO Technology Co., Ltd
Availability: InStock

Rumah Produk Kamera Keamanan Termal

JH640-275 Infrared Cooled Thermal Camera with MCT640×512 Detector 20mm~275mm Continuous Zoom and ≤25mK NETD

Detail produk:

Kontak

Detil Deskripsi produk

Menyoroti:

MCT640×512 Detector Thermal Camera

20mm~275mm Continuous Zoom Infrared Camera

≤25mK NETD Cooled Thermal Camera

JH640-275 Infrared Cooled Thermal Camera

Product Description

The JH640-275 Cooled Thermal Camera is a high-performance infrared imaging solution designed for precision thermal detection and analysis.

Technical Specifications

Detector

Specification	Details
Detector Type	MCT640×512
Pixel Size	15μm
Spectral Band	3.7μm~4.8μm
NETD	≤25mK @ 25℃
Cooling System	Stirling
Cooling Down Time	< 7min (at 25℃)

Optics Specification

Specification	Details
Focal Length	20mm~275mm continuous zoom
F#	5.5
FOV (H×V)	2.0°(H) ×1.6°(V) to 27.0°(H) ×21.7°(V)(±10%)

Image Display

Video output: Analog Video, Standard PAL
Digital video output: Base format cameralink
Digital video format: 640×512 @30Hz
Polarity: BH/WH
Calibration: Manual/Background calibration
E-zoom: ×2/×4
Reticle Display: ON/OFF
Image Enhancement Function: Yes
Image Flip: flip vertical and horizontal

Communication Interfaces

Communication and Control interfaces: RS232 or RS422

Power Supply

Specification	Details
Power Input	18VDC~32VDC with input polarity protection
Power Consumption	≤15W@25℃ (Standard operating condition) ≤25W@25℃ (Peak power consumption)

Environmental Specification

Specification	Details
Operating Temperature	-40℃~+60℃
Storage Temperature	-55℃~+70℃

Physical Specification

Weight: ≤1020g

Dimension: Fig.1

JH640-275 Infrared Cooled Thermal Camera with MCT640×512 Detector 20mm~275mm Continuous Zoom and ≤25mK NETD 0
